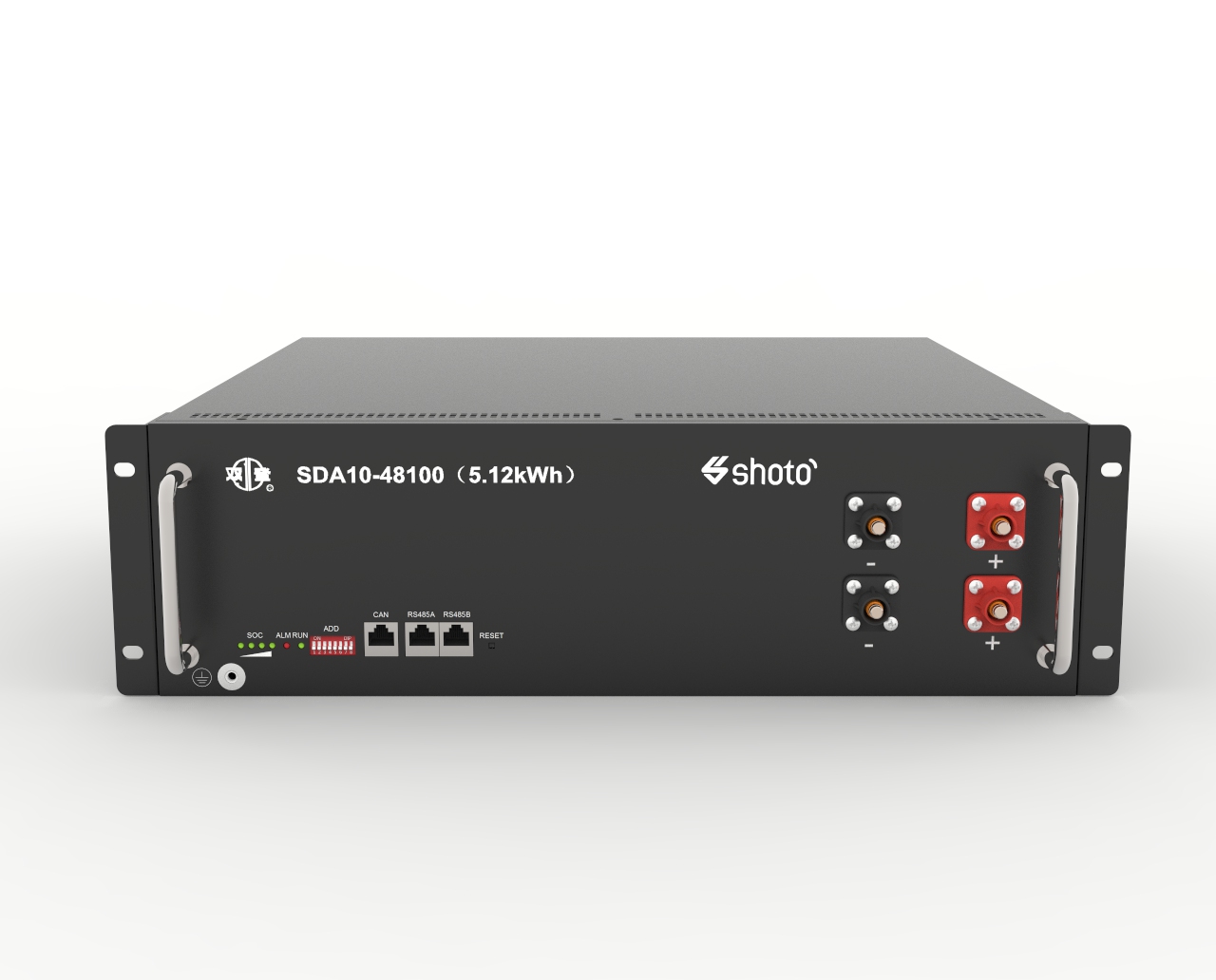

Shoto 5.12kwh Lithium-Ion Battery with more than 5000 cycles with 90% DOD and 10+ years design life.
5.12kwh Lithium-Ion Battery.
Model: 51.2-100.
Nominal Capacity (kWh): 5.12.
Depth of Charge: 90%.
Usable Capacity (kWh): 4.6.
Cycle Life: ≥5000 @25 Cº.
Charge Voltage (V): 57.6.
Discharge Voltage (V): 48.
Nominal Voltage (V): 51.2.
Max Parallel Quantity (Pcs): 16.
Charge/Discharge Current (A): Recommend 50 (0.5C) Max 100 (1C).
Communication Port: RS485 & CAN.
Weight (Kg): 43.
Dimensions (W*H*D) mm: 442*133*420.
Certificate: TUV(IEC 62619)/CE-EMC/UN38.3.
